SHX16 connector configurations
Configuration-oriented water-tight connector options for marine instruments and pressure-environment projects.
Review SHX16 optionsMarine instruments · underwater equipment · pressure environments
Interconnect options for marine and underwater project requirements
Select a water-tight connector or custom interface by defining where it operates, whether it is mated or unmated under pressure, how it connects to the cable or enclosure, and what the equipment must withstand.
Typical project settings
Built around the installation and operating sequence
Oceanographic instruments
Sensor, logging and measurement equipment that needs a compact cable or connector interface.
ROV and AUV development
Vehicle subsystems and payloads where mating, service access, cable routing and pressure conditions must be explicit.
Offshore and submerged equipment
Project-specific electrical connections for equipment housings, monitoring systems and pressure environments.
Connector options
SHX16 and SHX15 configuration paths
These source-traceable series provide visual and configuration starting points. Selection begins with contact arrangement, termination, cable interface, mating state and the exact pressure or immersion condition.
Water-tight configurationsProject-specific cable interfacesSmall-batch discussionEngineering input review
Compare the marine connector records

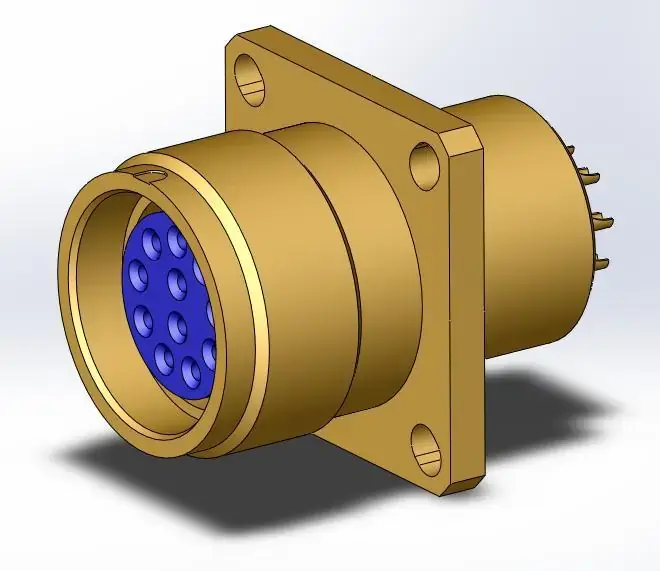

Catalog rendering
SHX15 connector configurations
A source-traceable connector record for water-tight project discussions with mating state and pressure conditions kept explicit.
Review SHX15 options

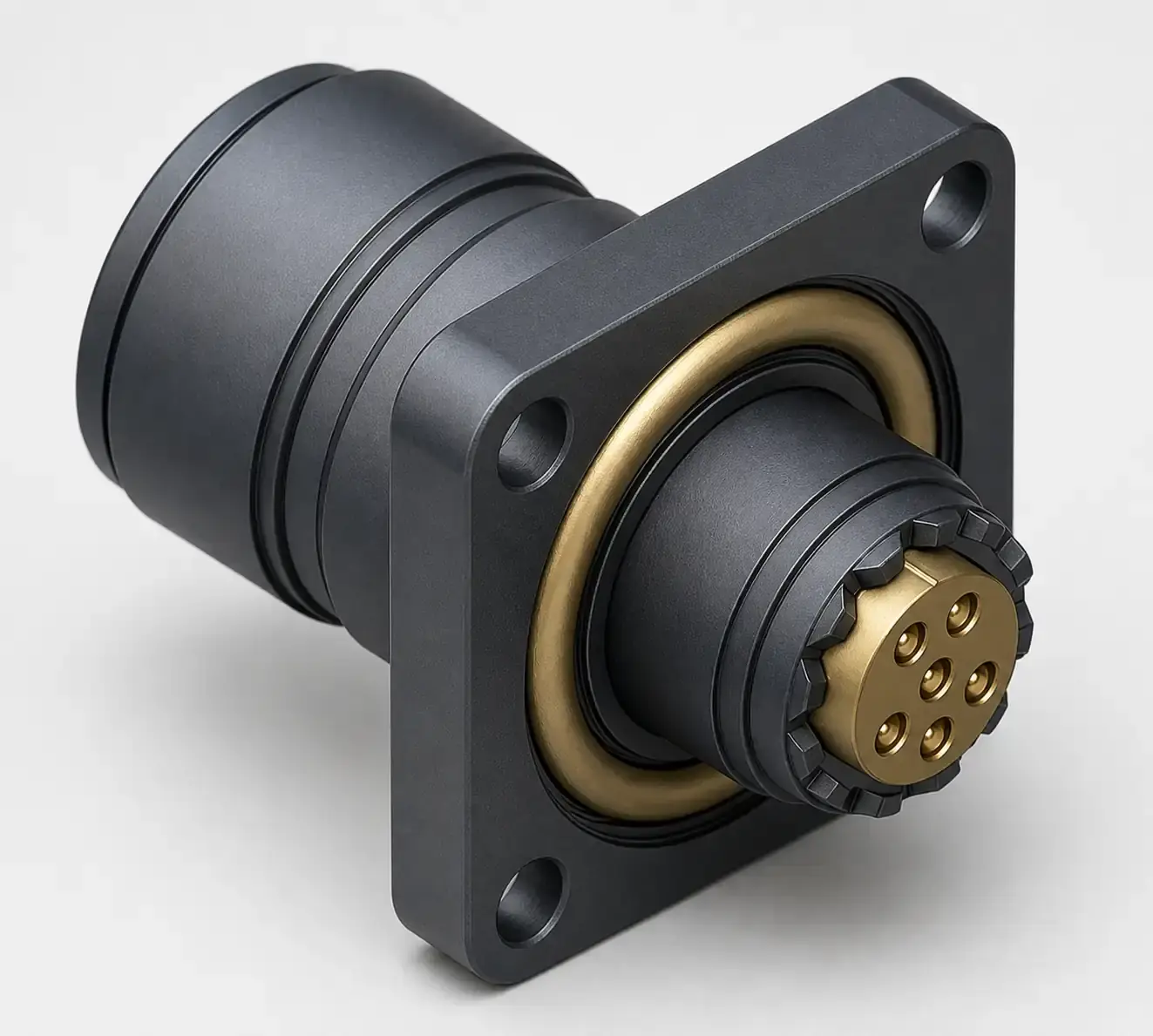

Representative configuration
Custom marine connector configuration
A representative visual for discussing interface, mating, cable, sealing and installation inputs.
Custom interface discussion
Define the mating and pressure conditions before selection
- Mated, unmated or open-face condition
- Working, test or short-duration hydrostatic condition
- Immersion medium, temperature and duration
- Cable, overmold, backshell and enclosure interface
- Contact count, voltage, current and signal requirements
- Quantity, sample or first-article and target timing
Project note: Submit the required depth, mating method, leakage and immersion conditions for configuration-specific review.
Made-to-order project support
Prepare a reviewable marine connector request
Send the equipment setting, mating sequence, pressure condition, cable interface, electrical requirements and destination so the correct technical and compliance route can be used.
