Spring-Loaded Contact Selection
Select a spring-loaded contact around the real mechanical stack-up and electrical duty. Pitch, travel, current, mounting, contact geometry and service life are reviewed together.
Have a project in view?Start with the closest series, drawing or operating requirement.
Buyer problem
Balance electrical contact with the available mechanical travel
Spring-contact performance depends on working travel, force, alignment, pitch, mounting and the mating surface. A useful request includes the stack-up and expected operating sequence, not only a product photo.
Typical project settings
- Test fixtures and charging interfaces
- Compact instruments and modules
- Automated equipment and replaceable assemblies
Product family
Compare the closest configuration starting points

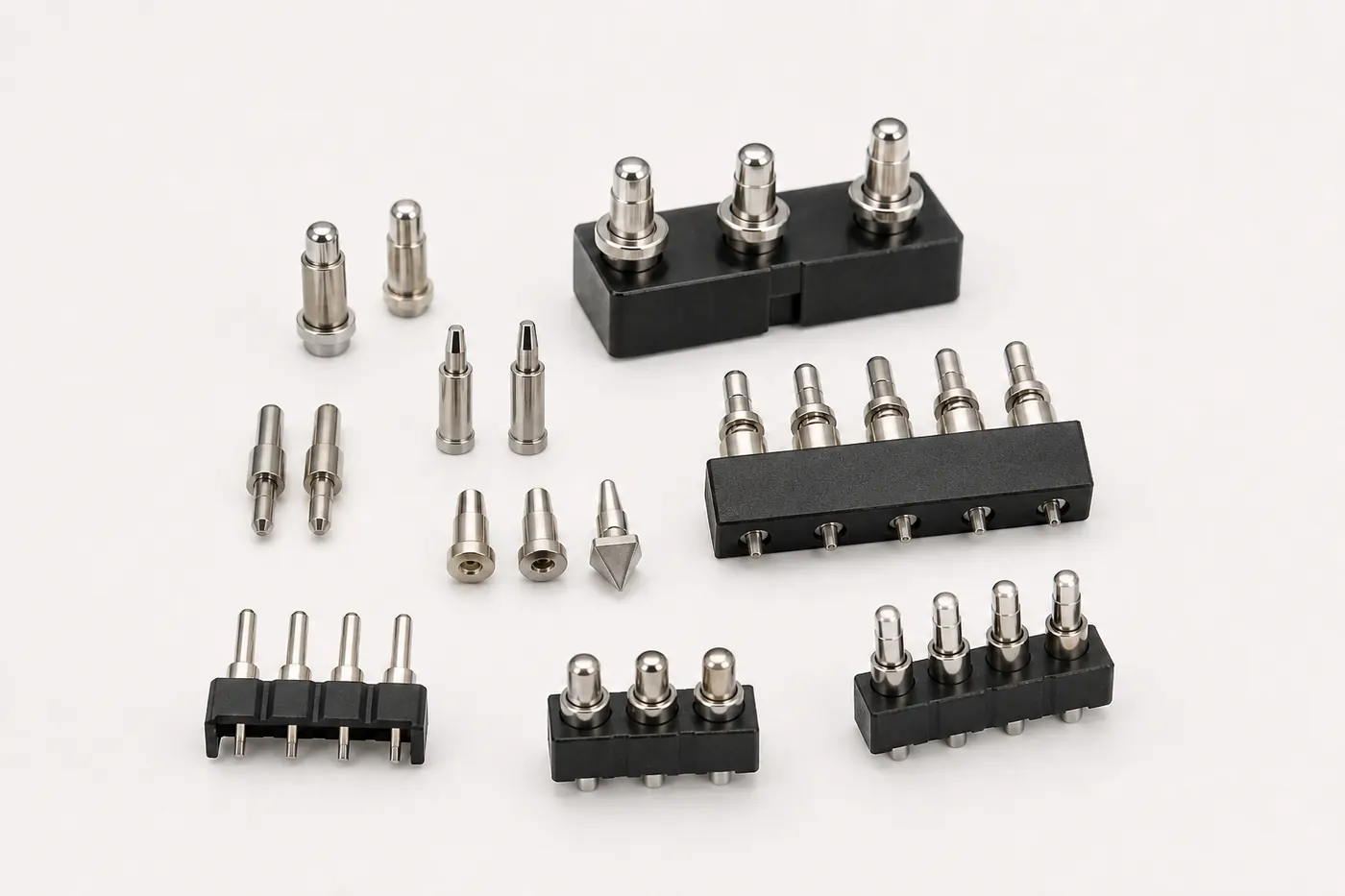

Use these representative visuals to identify the closest product family and prepare the configuration details for project review.
Configurable options
Define the contact and its array
Single contact
Specify mounting, overall envelope, working travel and mating-surface needs.
Contact array
Provide pitch, row pattern, board or housing interface and alignment tolerances.
Custom geometry
Share the available stack-up, current, cycle and environmental requirements.
Performance directions
Key design directions
- Working travel, force and alignment
- Current, contact resistance and temperature rise
- Cycle life, contamination and environmental exposure
Project and commercial route
Move from requirement to a reviewable quotation
- Standard-form and custom-layout discussion
- Final geometry, price and delivery are project specific
Project note: The family image supports contact-form identification only; exact geometry, electrical rating and life require configuration evidence.
Ready for a configuration review?Send the interface, environment, quantity and documentation needs for the next review step.
