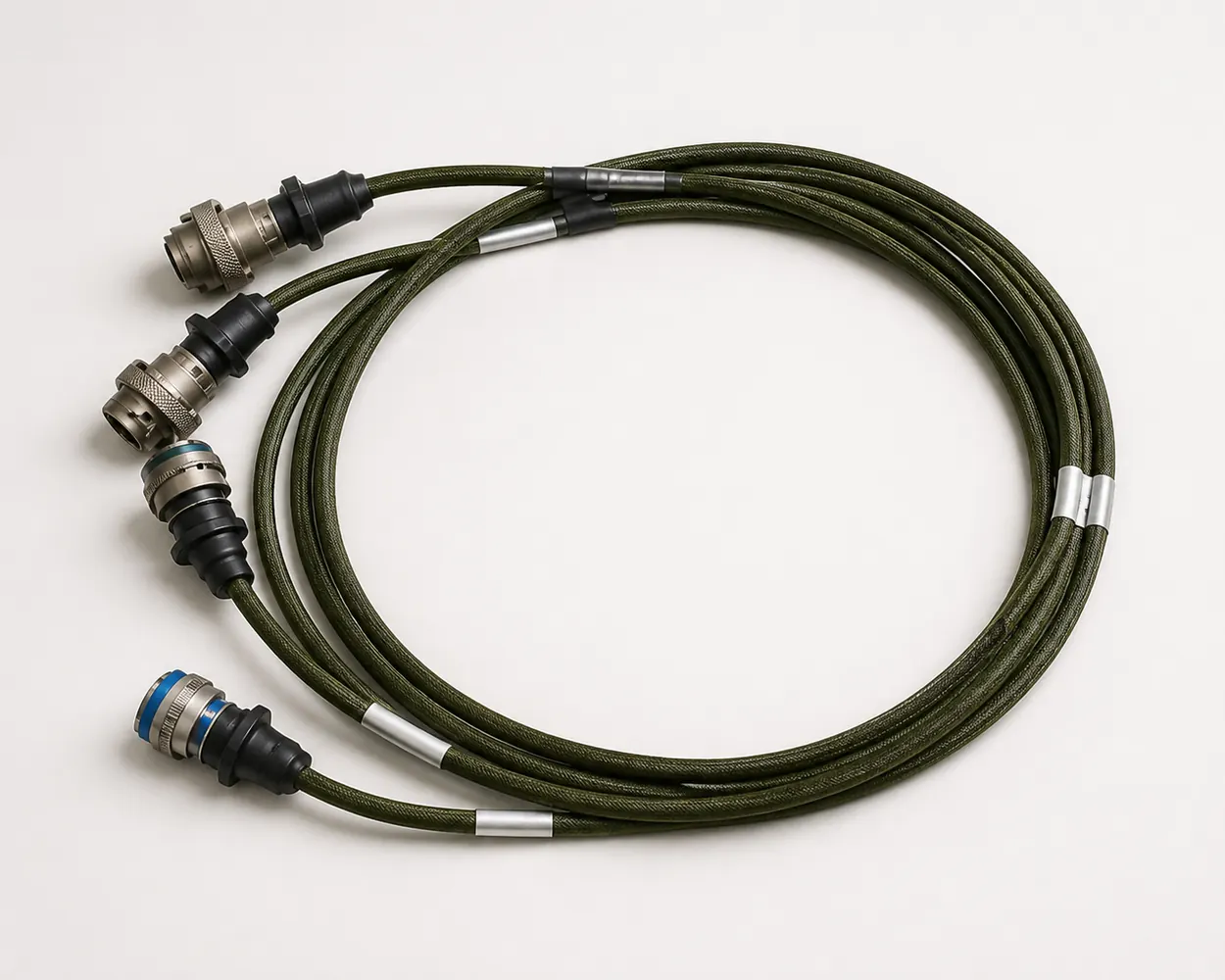

Representative custom cable assembly
Drawing-led cable assembly
Discuss connector ends, cable, branch points, lengths and termination details from the project drawing.
Drawing-led harnesses · branch layouts · project quantities
Custom Connector Cable Assemblies
Turn a connector and cable requirement into a reviewable assembly. Send the connector ends, cable, branch layout, lengths, termination, marking and test expectations needed for the quotation.
Have a project in view?Start with the closest series, drawing or operating requirement.
Buyer problem
Control every interface in the finished assembly
A cable assembly is more than two connectors and a cable. Branch locations, routing, strain relief, shielding, marking, installation envelope and acceptance tests must agree with the equipment drawing.
Typical project settings
- Industrial machinery and instrumentation
- Test equipment and control cabinets
- Project-specific multi-branch interconnects
Product family
Compare the closest configuration starting points
Use these representative visuals to identify the closest product family and prepare the configuration details for project review.
Configurable options
Build the request around the drawing
Connector ends
Identify each mating interface, orientation, backshell and termination.
Cable and branches
Define cable type, length, branch points, protection and routing constraints.
Acceptance inputs
State marking, continuity, insulation and any project-specific inspection needs.
Performance directions
Assembly-level inputs for engineering review
- Electrical circuits, shielding and grounding
- Mechanical routing, strain relief and installation envelope
- Environmental duty and required test documentation
Project and commercial route
Move from requirement to a reviewable quotation
- Made-to-order drawing review
- Sample and small-batch discussion where practical
- Project-specific quantity, price and delivery confirmation
Project note: The product assembly image is a form-factor example, not a current build, customer case, test result or fixed delivery commitment.
Ready for a configuration review?Send the interface, environment, quantity and documentation needs for the next review step.
