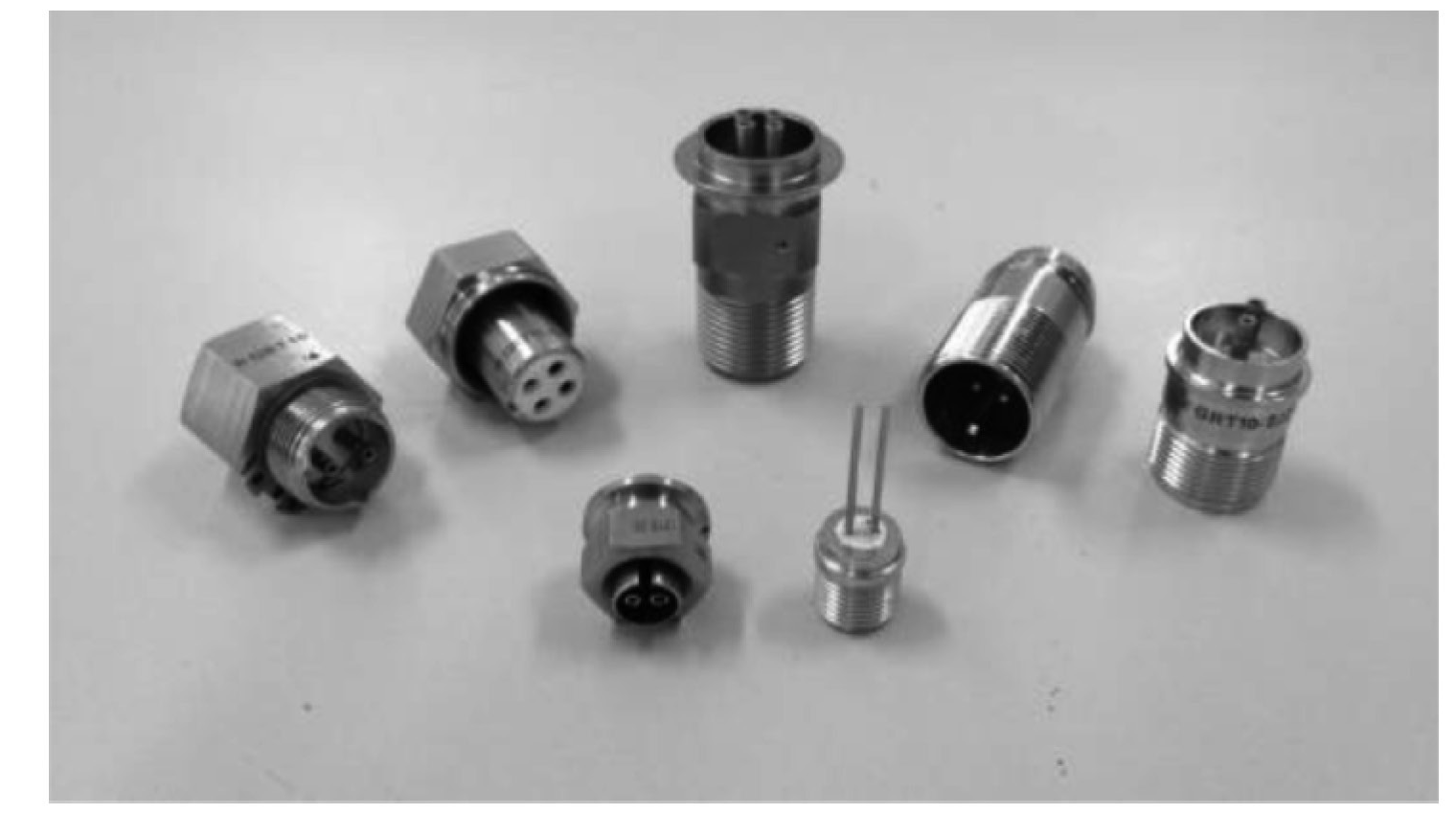

GRT high-temperature record
Real product photograph for configuration identification. Temperature wording remains bound to the exact source configuration and is not a current qualification claim.
Review the GRT evidence moduleConnector project selection
High-Temperature Connector Evidence Checklist
A temperature number is meaningful only with the exact configuration, rated state, exposure time, materials, electrical derating, environment, test method and acceptance. product GRT and PRG records remain separate.
Product portfolio
Relevant connector records
Use the visual references to identify the series or configuration you want us to review.

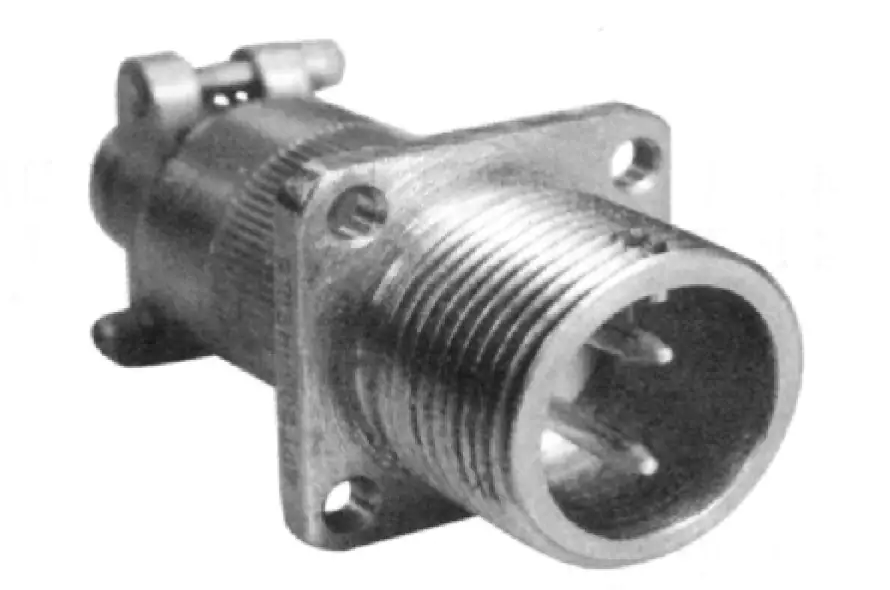

product catalog photograph
PRG high-temperature record
Small product product photograph for neutral identification. Conflicting source sets remain unresolved and are not combined into a current performance, qualification, production or supply claim.
Selection priorities
Define the key engineering inputs
Provide configuration and controlled source revision.
State minimum/maximum, dwell and duty.
State peak, duration, frequency and recovery.
State non-operating limits and duration.
State duty, loaded contacts and derating requirements.
State waveform, duration, points and hot/cold conditions.
State materials and environmental restrictions.
State seal material, cable and termination temperature needs.
Project fit
Application and configuration review
Use this checklist to turn a temperature request into a configuration-specific evidence package.
Two product PRG source sets retain different temperature, withstand and life fields; the conflict remains unresolved.
Operating, short-duration, transient, storage and test temperatures are different evidence fields.
Engineering conversation
Translate the requirement into a configuration
Working voltage, current, dielectric withstand and insulation evidence must be reviewed at temperature and remain separate.
Contact, shell, insulator, seal, plating, cable and termination evidence must match the exact temperature profile.
Exposure duration, cycles, mating life and post-test acceptance are required before making a lifetime statement.
Discuss engineering inputsInquiry checklist
What to send with your request
- Provide configuration and controlled source revision.
- State minimum/maximum, dwell and duty.
- State peak, duration, frequency and recovery.
- State non-operating limits and duration.
- State duty, loaded contacts and derating requirements.
- State waveform, duration, points and hot/cold conditions.
- State materials and environmental restrictions.
- State seal material, cable and termination temperature needs.
Frequently asked questions
Plan the next engineering step
Does +500 °C apply to every GRT configuration?
No. It remains bound to the precise product configuration line.
Can the PRG conflicts be averaged or combined?
No. Both source sets remain unresolved until controlled current evidence closes the conflict.
Is a maximum temperature a continuous rating?
Not necessarily. Duration, duty, cycles, state and acceptance are required.
Does high-temperature wording prove fire resistance or downhole use?
No. Those are separate claims and evidence paths.
Can room-temperature electrical values be used at the maximum temperature?
Not without configuration-specific derating and test evidence.
What should I submit first?
Provide configuration, temperature profile, electrical duty, environment, life target, reports required and project context.
