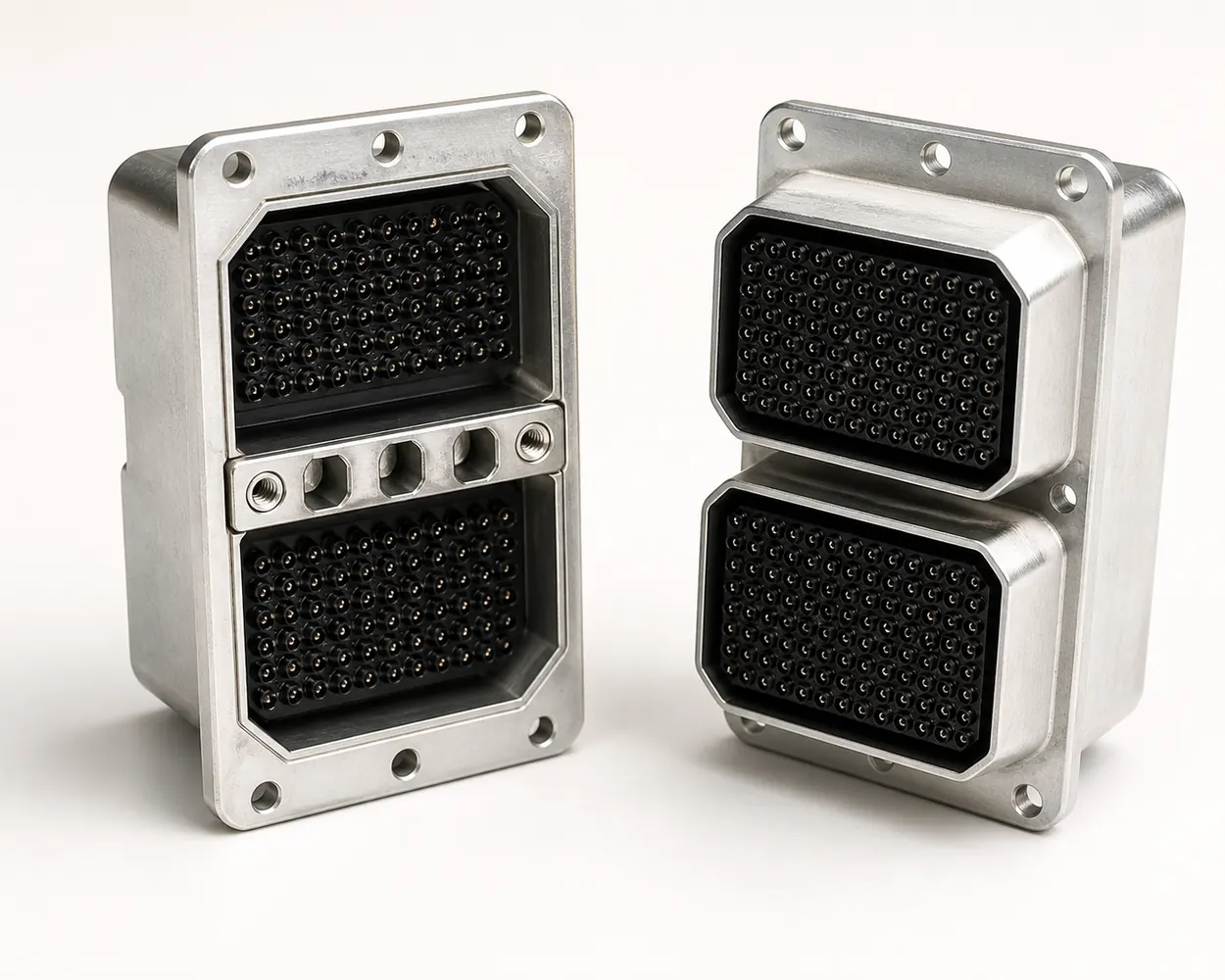

Representative avionics I/O configuration
Avionics I/O connector pair
A representative starting point for series, mating interface and equipment-context discussion.
J177 · MK6 · MK7 · controlled project review
Avionics I/O Connector Selection
Identify the exact series, mating interface and equipment context before requesting technical data.
Have a project in view?Start with the closest series, drawing or operating requirement.
Buyer problem
Prevent a familiar interface name from becoming an unsupported compatibility claim
Avionics I/O requests must align the exact connector series, contact or module arrangement, equipment interface, qualification need and document-release route.
Typical project settings
- Avionics equipment interface review
- High-reliability I/O configuration studies
- Controlled replacement and qualification assessment
Product family
Compare the closest configuration starting points
Use these representative visuals to identify the closest product family and prepare the configuration details for project review.

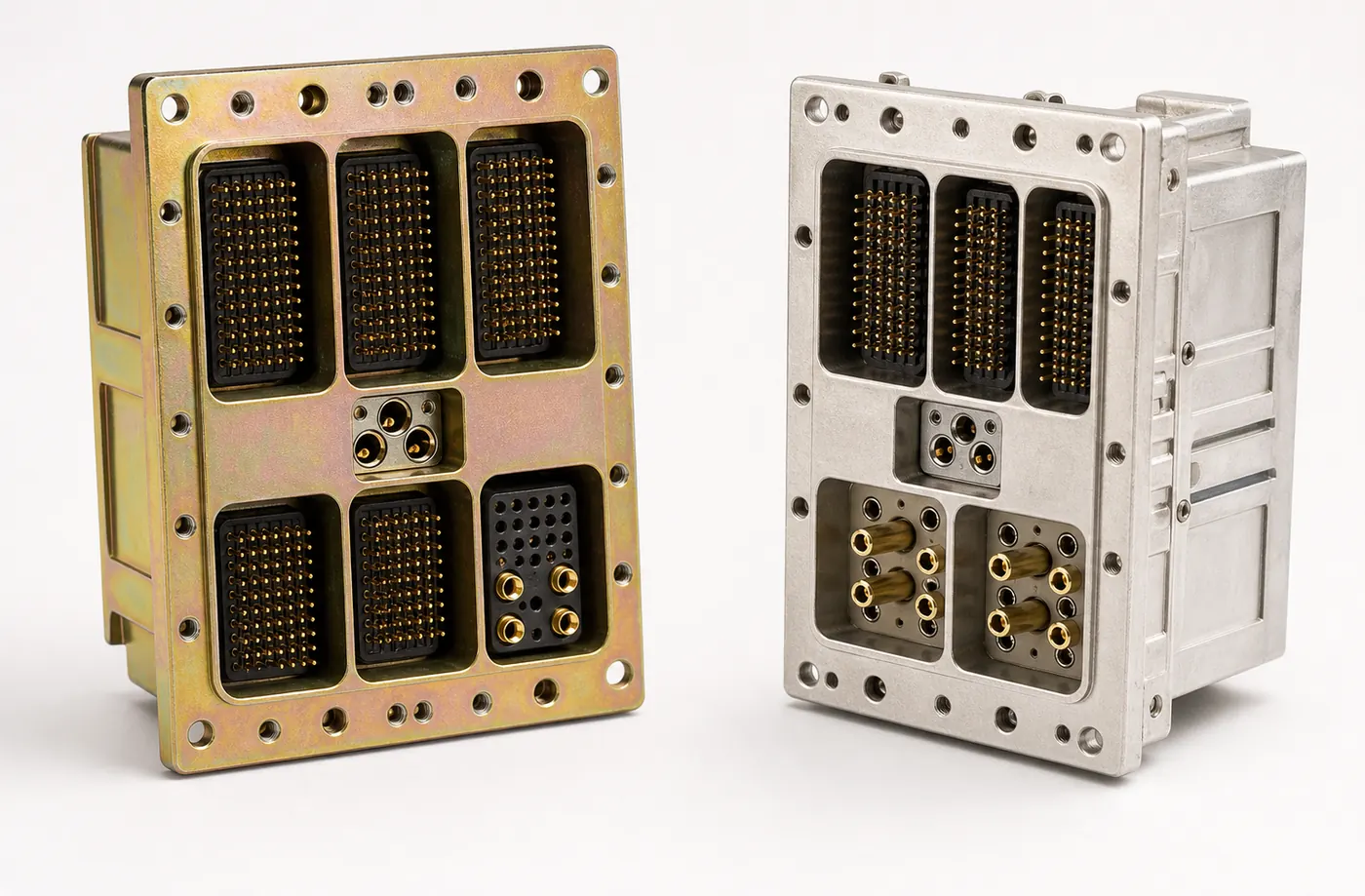

Representative mixed-module I/O configuration
Mixed-module I/O arrangement
Use the mixed-module view to organize interface, module and document requirements for review.
Configurable options
Use a separate evidence chain for every series
J177
Series-specific identity and configuration review; no MK6 or MK7 fields transfer.
MK6
Separate source record for module, mating and equipment-interface discussion.
MK7
Independent record requiring its own configuration, evidence and release review.
Performance directions
Define the project evidence before selection
- Exact series, configuration and mating interface
- Electrical, environmental and mechanical duty
- Qualification, airworthiness, document and final-use requirements
Project and commercial route
Move from requirement to a reviewable quotation
- Model-specific engineering discussion
- Controlled technical-data and final-use review
- Quotation only after configuration and transaction gates are clear
Project note: No ARINC compliance, compatibility, interchangeability, QPL/QPD, PMA, TSO, airworthiness or program approval is claimed.
Ready for a configuration review?Send the interface, environment, quantity and documentation needs for the next review step.
