Representative railway and industrial configuration

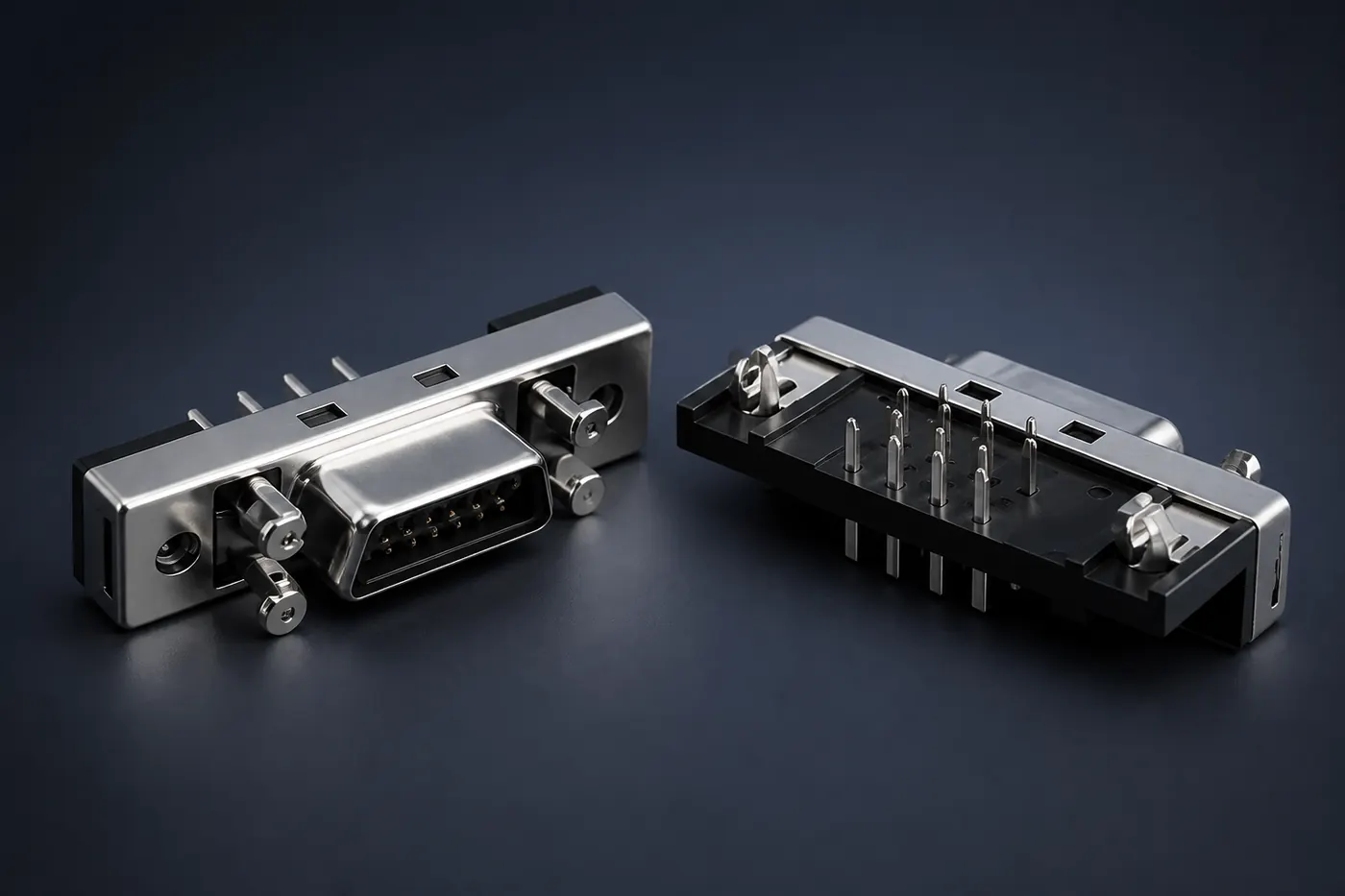

Railway and industrial connector pair
A representative starting point for equipment envelope, mounting, mating and cable requirements.
Rolling stock · automation equipment · rugged interfaces
Railway and Industrial Automation Connectors
Start with the equipment location, mating interface, cable or board connection and operating environment. Industrial circular and rectangular records can then be reviewed for the required project configuration.
Have a project in view?Start with the closest series, drawing or operating requirement.
Buyer problem
Select for the equipment interface—not the application label alone
Railway and automation projects may need compact packaging, secure mating, cable management and environmental durability. The exact connector still depends on configuration, mounting, termination and evidence required by the project.
Typical project settings
- Rail vehicles and onboard equipment
- Industrial automation and control cabinets
- Rugged machinery and test systems
Product family
Compare the closest configuration starting points
Use these representative visuals to identify the closest product family and prepare the configuration details for project review.
Configurable options
Use the record as a configuration starting point
MY11 series record
product rectangular connector identity for contact, mounting and mating-interface discussion.
Industrial circular options
Review coupling, termination, shell and cable exit for the equipment environment.
Custom equipment interface
Provide envelope, mounting, mating access, cable and documentation requirements.
Performance directions
Project inputs to confirm
- Electrical circuits and termination
- Vibration, shock, temperature and sealing requirements
- Any railway, equipment or project qualification evidence required
Project and commercial route
Move from requirement to a reviewable quotation
- Equipment-specific configuration review
- Sample or small-batch discussion where practical
- Sensitive or unclear end use is escalated to Compliance Review
Project note: The MY11 visual supports series identification only; no railway qualification, current production, compatibility or fixed performance is claimed.
Ready for a configuration review?Send the interface, environment, quantity and documentation needs for the next review step.
